Nine Villas Complex
私人别墅群设计

Location: Venice, Italy

Type: Architecture Design,  Interior Design, Sustainability

Design Team: RBA

Total Area: 4485 m2

Single Area: 305.26m2

Volume: 783.26m3

Cost: To be confirmed

Design Time: April 2011

Construction time: Under construction

Special mention: Casaclima Sustainable Architecture Golden Award





项目地点:威尼斯,意大利

项目类型:建筑设计,室内设计,可持续设计

设计团队: RBA

总建筑面积:4485 m2

单体建筑面积:305.26m2

单体体量:783.26m3

造价:待定

设计时间:2011年4月

完工时间:施工中

特别提示:

CasaClima欧洲绿色建筑机构认证金奖项目





1_02_c
1_02_c

press to zoom
GIARDINO
GIARDINO

press to zoom
g13
g13

press to zoom
1_02_c
1_02_c

press to zoom
1/4
4. CAMERA_01-small.jpg

As a residential building project, in addition to creating and implementing design forms, we hope to promote a more harmonious, more reasonable and healthier architectural attitude, spatial attitude and attitude towards life.



In addition to paying attention to the originality of the design, the details of the design and the construction of the project, of course, these are the foundations of course. On this, we pay more attention to how the new building will be more friendly in the urban living environment. If you let everyone portray the ideal living environment, it may easily resonate, you need to open up free space, you need emotional communication, you need beautiful streets, and you need plants that are just as good. It is not a blind ideal state. The evolution of the behaviour of people in hundreds of worlds and the performance of the relationship between urban scales is typical and most original yearning. And while the builders of this city are also paying attention to economic benefits and manufacturing costs, are we still likely to adopt new design languages, more comprehensive planning concepts and new technology development and application, which does not violate the growth of urban modernization? It also provides a natural and comfortable place to stay.

In traditional applications, buildings exist for function, and design occurs for the physical form. Buildings provide users with a place where behaviour can occur, while users create activities in a well-constructed environment. This is the behaviour of physical overlays. In our vision, architecture should be full of vitality, a partner who can become a user and always self-regulating, and can respond positively to human behaviour. In the most ideal state, this is not a process that takes place in acceptance, but a process of dynamic intervention and adaptation.







作为一个住宅类建筑项目,除了创造与实现设计形态之外,我们希望可以借此倡导一种更和谐,更合理,更健康的建筑态度,空间态度和生活态度。



除了关注设计的原创度,设计的细节与建造的工程,当然这些是理所当然的基础,在此之上,我们更加反思新建建筑如何再城市人居环境中更友好地存在。 如果让每个人描绘理想的生活环境,可能很容易产生共鸣,我们需要开阔自由的空间,需要情感交流,需要漂亮的街道,需要繁茂得恰到好处得植物。这不是一种盲目的理想状态,这是从几百个世纪中人的行为与城市尺度关系的演化与磨合中得来的,是一种最典型又最原始的向往。而在当下这个城市的建造者同样关注经济效益与制造成本的情况下,我们是否仍然有可能通过新的设计语言,更全面的规划概念以及新的技术研发与应用,既不违背城市现代化的生长,又提供一处自然舒适的住所。



在传统的应用中,建筑是为功能而存在的,设计是为了形体而发生的,建筑为使用者提供了可以发生行为的场所,而使用者则在建筑限定好的情境下制造活动。这是物理叠加的结果。而在我们的愿景中,建筑应当是富有生命力的,是能成为使用者的伙伴并时刻自我调节而存在的,是可以对人的行为予以积极回应的。在最理想的状态中,这不是一个发生于接受的过程,是一个动态的干预与适应的过程。



















Master Planning

​总平面规划

These 9 villas, surrounded by greenery and tranquillity, are located a stone's throw from the sea and from the centre of Jesolo. Only half an hour from the two nearest airports and not far from the Medieval town of Treviso and the beautiful setting of Venice, these villas meet the needs and interest of both locals and tourists attracted by the landscape, the history and the architectural richness of the Venetian territory.



这9栋别墅周围环绕着绿色和宁静,距离大海和Jesolo市中心仅有一箭之遥。距离最近的两个机场仅半小时,离中世纪小镇特雷维索和威尼斯的美丽景色不远,这些别墅满足了当地人和游客对威尼斯的地域景观,历史和建筑丰富的吸引力的需求和兴趣。





The complex is made up of 9 independent villas that share a large pedestrian area, where children can play safely in a condominium garden of 2,300 square meters. To greater convenience of the residents, within the area, in addition to the exclusive parking spaces of each house, a number of courtesy parking areas are guaranteed to welcome guests.



该建筑群由9栋独立的别墅组成,共有一个大型步行区,孩子们可以在2300平方米的公寓花园中安全玩耍。

为了更方便居民的生活,在该地区内,除了每间房屋的专用停车位之外,还有一些礼宾停车区保证满足到访的客人。



社区总平面





180629_GUI_Part 1 12.png
130903_GUI_Presentazione per acquirenti_













Permeability, Privacy and shadow

​通透性,住宅隐私与阴影之间的完美平衡





Through perfect design and planning combination in terms of facade opening and building orientation, these 9 villas will not interfere with each other on sunlight gaining and sight viewing.



9栋独立别墅通过开窗,建筑高度与朝向的规划与设计结合,保证了每座建筑之间的采光与公园朝向的观景不会相互遮挡。​​在一年四季的更替中,每一栋别墅的阴影均不会遮盖住其他八栋别墅的开窗立面,保证了每一栋别墅在冬季对太阳光的最大化吸收。

​建筑高度规划







130903_GUI_Presentazione per acquirenti_

建筑阴影控制







130903_GUI_Presentazione per acquirenti_

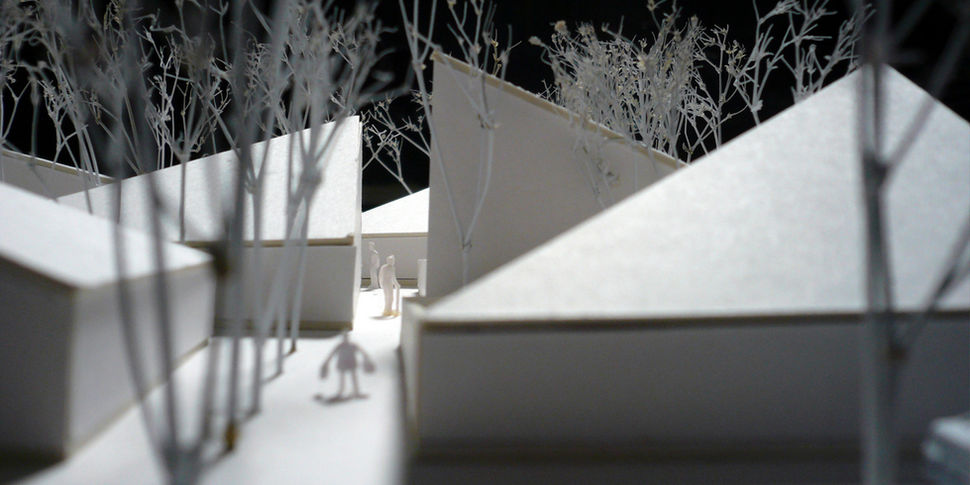

Physical model

建筑模型



















The villa

别墅建筑单体设计





Every single villa has its own private garden in addition to the ample residential park. A swimming pool within the private garden can be equipped at the client’s request (optional).



Furthermore, the villas will also be provided with solarium, back garden and, in some cases, porch. Inside, a mezzanine defines the spaces of the living area, while the master bedroom is characterized by its double height. One or two covered parking spaces are provided for each unit, while guests will be utilizing some other dedicated parking areas inside the complex.



除了优美的社区公园外,每栋别墅都拥有自己的私人花园和私人泳池。



此外,别墅还将提供日光浴室,后花园和门廊以丰富住家氛围。在室内,通过楼层来区分居住空间,首层为公共开放区域,夹层以上为私密区域。利用三角的建筑形态,主卧室得以双层高度做为空间特色。每个单元都提供一个或两个带顶棚的停车位,而客人则可以使用社区内的其他一些专用停车区。

室内剖面环境







north facade
north facade

press to zoom
south facade
south facade

press to zoom
west facade
west facade

press to zoom
north facade
north facade

press to zoom
1/4
180629_GUI_Sequence of renderings 1.png

In order to meet the needs of different homes, the villa offers three different functional layouts to meet the possibilities of ordinary home, office and small-sized apartments.

为兼顾不同的住家需求,别墅提供了三种不同的功能布局,以满足普通居家,办公及小户型的改造可能性。

​户型类型​







Standard home   is spacious, comfortable, safe, designed to ensure energy savings and to provide those who live in comfort and features such as the private garden, the security of the video control system and the video intercom, the double parking space, and extra carports for the guests. It is the ideal solution for families of all sizes.





标准住宅     宽敞,舒适,安全,旨在确保节能,并为居住舒适的人提供私人花园,视频控制系统和视频对讲的安全性,双人停车位和额外的车库客人。它是各种规模家庭的理想解决方案。







见02号户型设计







Villa with office   is characterized not only by the features of the standard model but offers the possibility of creating a private, separate studio inside the house, with an independent entrance for the clients. Villa Studio is designed for those ones who love working at home, or for those ones who take care of children or non-self- sufficient people. Villa Studio is the ideal solution to bring work at home.





办公住宅   不仅具有标准型号的特色,还可以在房屋内创建一个独立的私人工作室,为客户提供独立的入口。 办公住宅专为那些喜欢在家工作,或是希望同时照顾家庭的独立工作者而设的理想解决方案





见04号户型设计







Villa with two flats    offering two separate entrances and exits, the villa can be split into two separate homes, perfect for small homes or those who wish to have independent privacy.





双套住宅     提供两个独立出入口,可将别墅拆分成两套独立住宅,是为小型住家,或那些即希望可以得到独立隐私的大家庭提供的完美户型方案









见05号户型设计







See more about the architecture design of the project

​点击查看更多别墅建筑设计展示













How sustainable technologies contribute to a residential building?

可持续绿技术如何造福一个住宅的宜居性?





Designing and building a home means triggering processes that will affect multiple generations and will not only affect the cost of maintenance and management. The choice of suitable materials, technologies and systems allows the realization or redevelopment of homes with very low energy consumption and which, at The same time, offer a high level of thermal comfort and respect for the environment. For a result that satisfies the inhabitants, it is essential above all the care of the single details.



The villas are certified by CasaClima KlimaHaus in Gold energy class thanks to a casing with high thermal insulation and utilize the most advanced anti-seismic construction techniques. The combined floor heating, air conditioning, mechanical controlled ventilation with heat recovery and photovoltaic panels systems are designed to ensure efficiency in the use of energy resources and respect for the environment. In addition to these thermal benefits, the 60 cm thick external walls guarantee a very high acoustic performance.

设计和建造住宅不仅关系到居住者日常维护和管理的成本问题,更是一个深切影响着其世代家庭生活的过程。合适的材料,技术和系统的选择提供了非常低能耗的居家成本但同时非常高水平的热舒适性的可能性,这是不仅是对家庭的尊重,也是对环境的尊重。



由于具有高隔热性能,并采用最先进的抗震建筑技术,别墅项目获得了欧洲绿色建筑机构CasaClima的金奖认证。综合地暖,空调,带热回收和光伏面板系统与新风系统的设计旨在确保能源使用的高效率性,和对环境的尊重。 除了这些热效益之外,60厘米厚的外墙保证了别墅同时具备绝佳隔音隔热效果。



















Passive house as a living creature.

​消极住宅建筑应当是一个可以自发调节性能的生物体





CasaClima (in German KlimaHaus) is a method of energy certification of buildings presented in 2002 in compliance with what has already been dismissed by the European Community as Directive Cee 2002/91/Ce, which, following the Kyoto protocol, deals with the issue of energy certification of buildings.



A passive house is a building that covers most of its energy needs for indoor space heating and cooling using passive devices. A passive house is, therefore, a home that ensures thermal wellbeing without or with a minimum internal heating energy source to the
building, that is, without any "conventional" heating system, ie boiler and radiators or similar systems. It is, therefore, a house that maximizes energy efficiency. The house is called "passive" because the sum of the passive heat input of the solar radiation transmitted from the windows and the heat generated inside the building by household appliances and occupants themselves are almost sufficient to compensate for the losses of the envelope during the cold season.



CasaClima(德国KlimaHaus)是2002年提出的建筑能源认证方法,符合欧洲共同体指令Cee 2002/91 / Ce,该指令遵循京都议定书,处理建筑能源认证。



消极住宅建筑的本质定义是通过最小的动力能耗满足房屋室内对于供暖与制冷的需求。换句话说,消极住宅不需要(或极少量的)依赖任何“常规”加热制冷系统,但同时却可以满足室内气温的自我调节而使室内环境处于相对稳定宜居的状态,是一个能源效实现最大化的房子。之所以称为“被动”,是因为除了住宅在日常使用过程中,电气产品,人的活动所产生的热能,结合通过窗户自然收集的太阳热能,已经可以满足补偿季节更替所造成的不同气候条件下热能的交换损失。因此, 设计一座消极住宅,对于光,热,通风,材料的研究与应用至关重要。

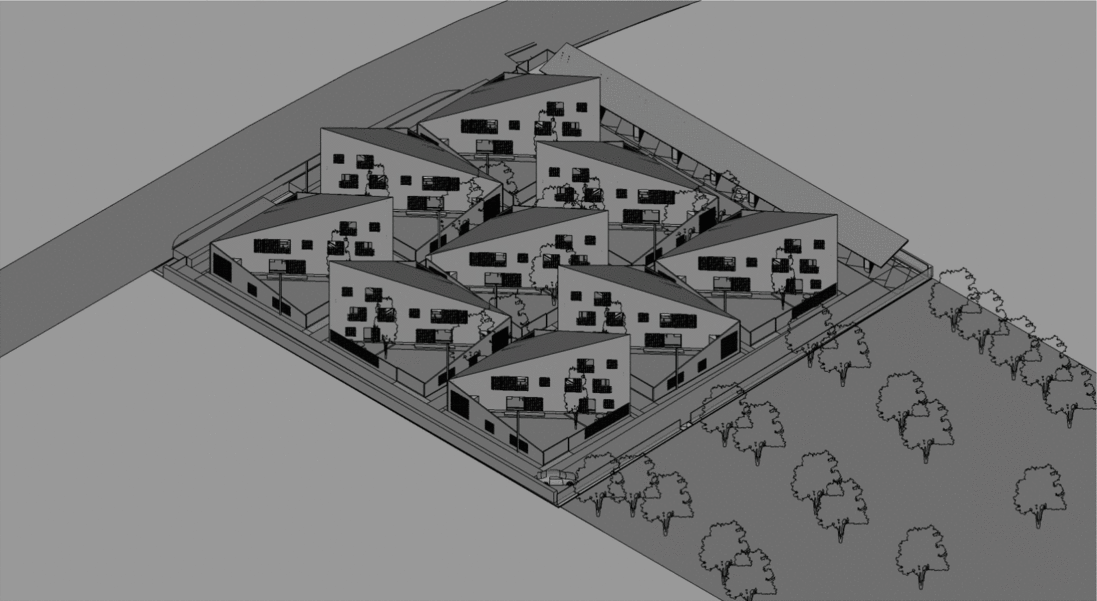

​社区光照能研究







ezgif.com-crop (1).gif

See more about the sustainable design of the project

点击查看更多别墅可持续技术设计展示
